State in PlayMaker.
Gameplay in Game Creator.

Connect your state machines to native Actions, Conditions, Properties, and Signals—with explicit control over context, data, and execution.

Build your first workflow →Explore the examples

PlayMaker 2Game Creator 2 CoreUnity 6v1.1.3

PlayMaker 2 Integration for Game Creator 2 connects PlayMaker's state machines with native Game Creator 2 gameplay. An FSM decides which behavior should run; GC2 performs the authored gameplay work. Both tools keep their own graphs and data ownership.

Your First Connection#

GC2 interactionA native Trigger sends Interact to a named FSM.
PlayMaker stateThe door moves from Closed to Opening.
GC2 routineRun GC2 Actions executes the opening behavior and waits.
PlayMaker completionThe completion event moves the FSM to Open.

Start with the door walkthrough, then inspect the six reference scenes.

What You Can Build#

↔

Native gameplay from FSMs

Run GC2 Actions or inline Instructions; branch on native Conditions.

◇

FSM-aware GC2 logic

Send events, inspect states, wait for completion, and read typed FSM variables.

≋

Explicit data access

Read and write on demand, transfer lists, or opt into Property Binder synchronization.

↗

Events with a clear destination

Use local events, GC2 Signals, or typed Gameplay Events.

▶

Reusable FSM routines

Expose typed inputs, outputs, completion rules, and execution policies to GC2.

⌕

One integration workspace

Discover capabilities, scaffold templates, inspect relationships, and diagnose execution.

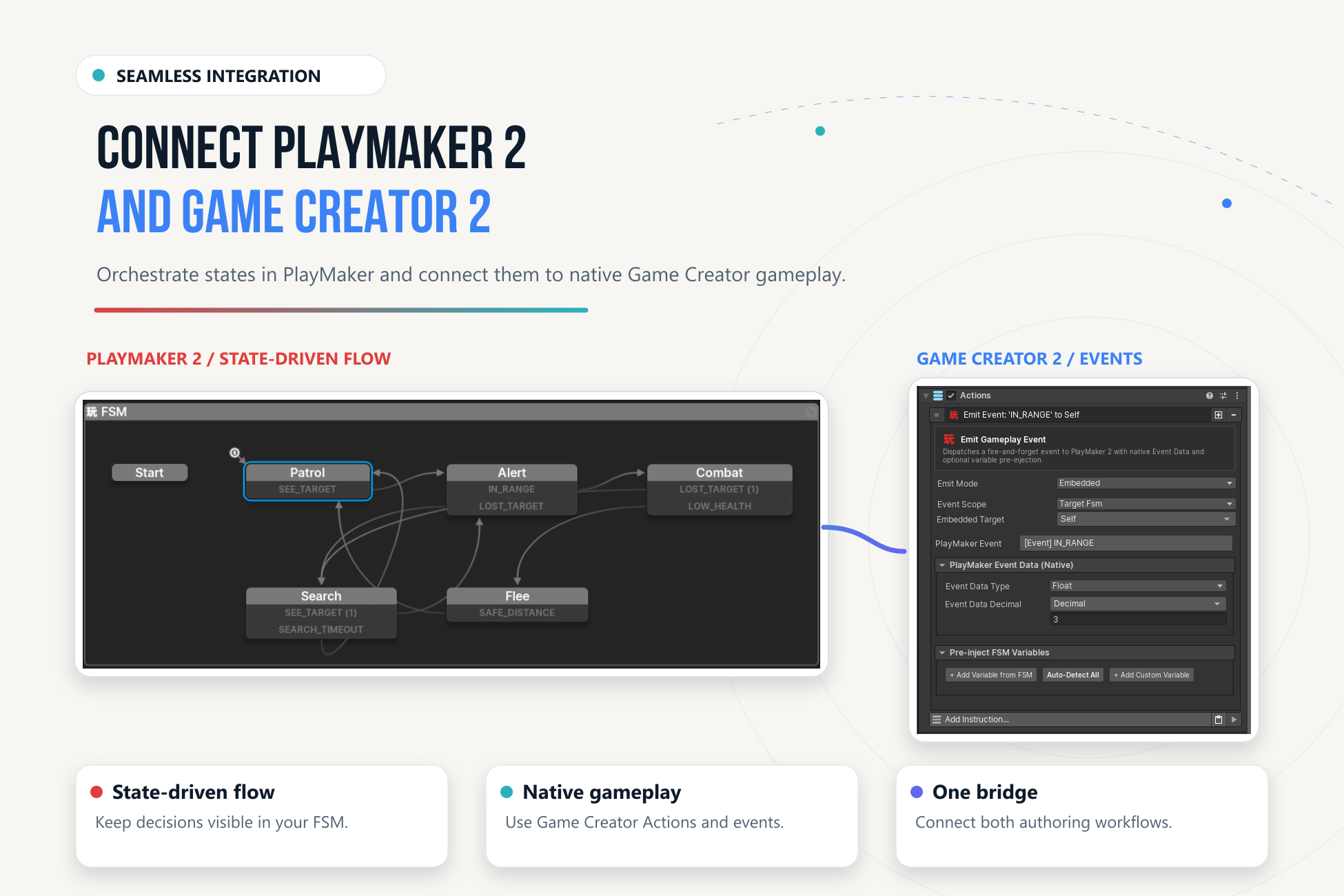

PlayMaker state graph connected to a native GC2 gameplay event emitter — A state-driven graph and a GC2 event endpoint, reproduced from the bundled manual. Open image for full size ↗

Choose a Learning Path#

Your goal	Start here	Continue with
Make your first connection	Getting Started	Examples
Reuse GC2 gameplay in a state	PlayMaker → GC2	Context mapping
Drive an FSM from GC2	GC2 → PlayMaker	Callable Routines
Share gameplay data	Variables & Property Binder	Singletons & Utilities
Diagnose a connection	Integration Workspace	Troubleshooting
Extend with C#	Scripting API	Compatibility

Requirements at a Glance#

Install Game Creator 2 Core and PlayMaker 2 before importing the integration. Optional GC2 modules add capabilities when installed; they are not required for the Core door example.

This site documents v1.1.3. The original qualified baseline uses Unity 6000.4.6f1, GC2 Core 2.18.60, and PlayMaker 2.0.0-beta.80. Later focused checks ran on Unity 6000.6.0f1. See Compatibility for the distinction and Changelog for the release history.
