PlayMaker IntegrationGame Creator 2 Module
Start herePlayMaker GC2 · v1.1.3

Integration Workspace#

Open Game Creator > PlayMaker 2 or PlayMaker > Game Creator 2. The workspace brings authoring, discovery, validation, and runtime inspection into one window.

Find Your Way Around#

Section Page Use it for
Start Quick Start Orientation and workflow entry points.
Start Project Overview Environment, installed modules, integration summary, and quick actions.
Authoring Action Palette Search capabilities and context-aware suggestions.
Authoring Templates Inspect and scaffold architecture patterns.
Architecture Gameplay Routines Discover and inspect reusable routine assets.
Architecture Property Bindings Inspect configured data connections.
Architecture Gameplay Events Discover typed event assets and endpoints.
Debugging Scene Explorer Search indexed FSMs, states, events, variables, and action usages.
Debugging Diagnostics Scan integration health and inspect issues.
Debugging Execution Trace Record and inspect bridge operations in Play Mode.
Configuration Settings Execution, diagnostics, variables, Signals, and Singletons.

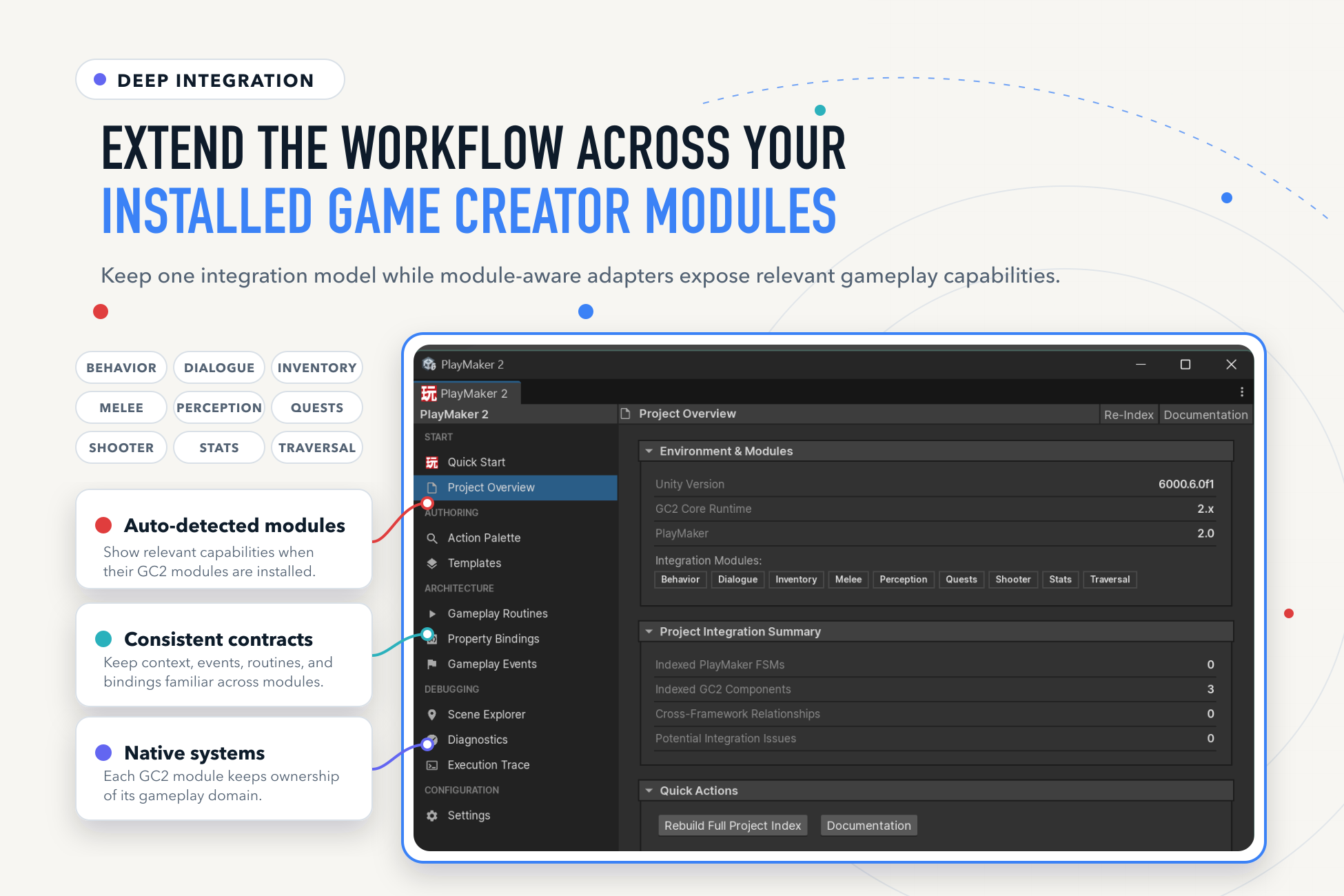

Project Overview with environment information, detected modules, and index summary
Project Overview shows the environment and modules present in that project. Installed modules vary by project. Open image for full size ↗

Discover an Action or Pattern#

  1. Select the gameplay GameObject in the Hierarchy.
  2. Open Action Palette and search for the job: run gameplay, evaluate a condition, read a property, or send an event.
  3. Inspect context-aware suggestions and available capabilities. Module entries depend on installed modules.
  4. Use Templates for a starting state structure. Review generated states, variables, references, and transitions in the native editors before running it.

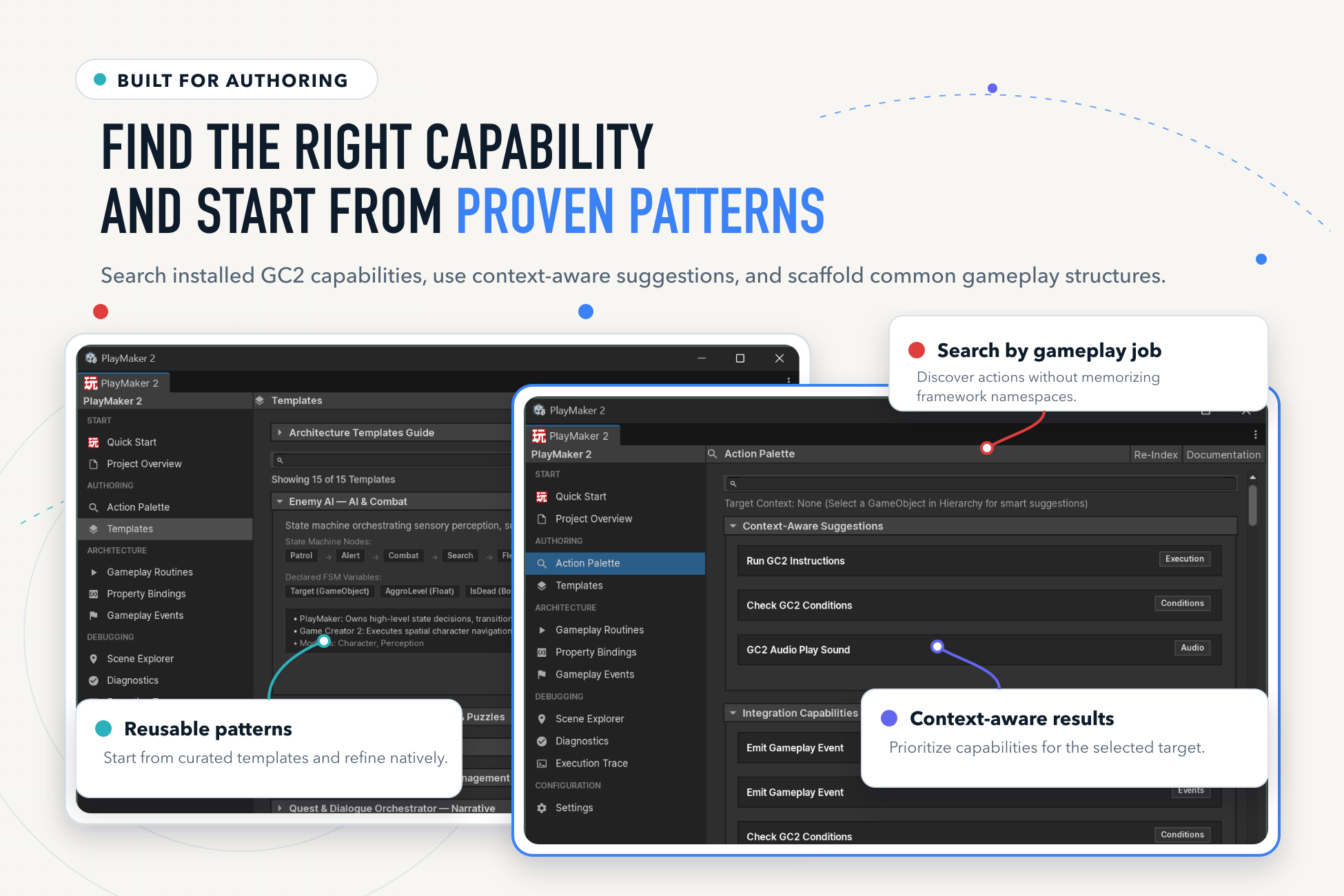

Action Palette search and Templates in the Integration Workspace
Use the palette for discovery and templates for a starting structure; continue authoring in PlayMaker and GC2. Open image for full size ↗

Inspect Relationships#

Use Scene Explorer to find indexed FSMs and their action usages. Search supports the displayed prefixes, including fsm:, state:, event:, and uses:. Use Ping, Select, or Open in FSM Editor to inspect the actual object.

Use Re-Index after major imports or when the summary is stale. The index discovers authored relationships; dynamic targets still need Play Mode verification.

Diagnose a Runtime Connection#

  1. Open Diagnostics and run the scan. Address unresolved targets, missing identifiers, and incompatible data pairings.
  2. Open Execution Trace, enable recording if paused, and enter Play Mode.
  3. Reproduce one interaction, then pause recording to inspect its records.
  4. Inspect the operation, outcome, context, and associated object. Navigate to the failing component.
  5. Clear the trace and repeat after correcting the configuration.

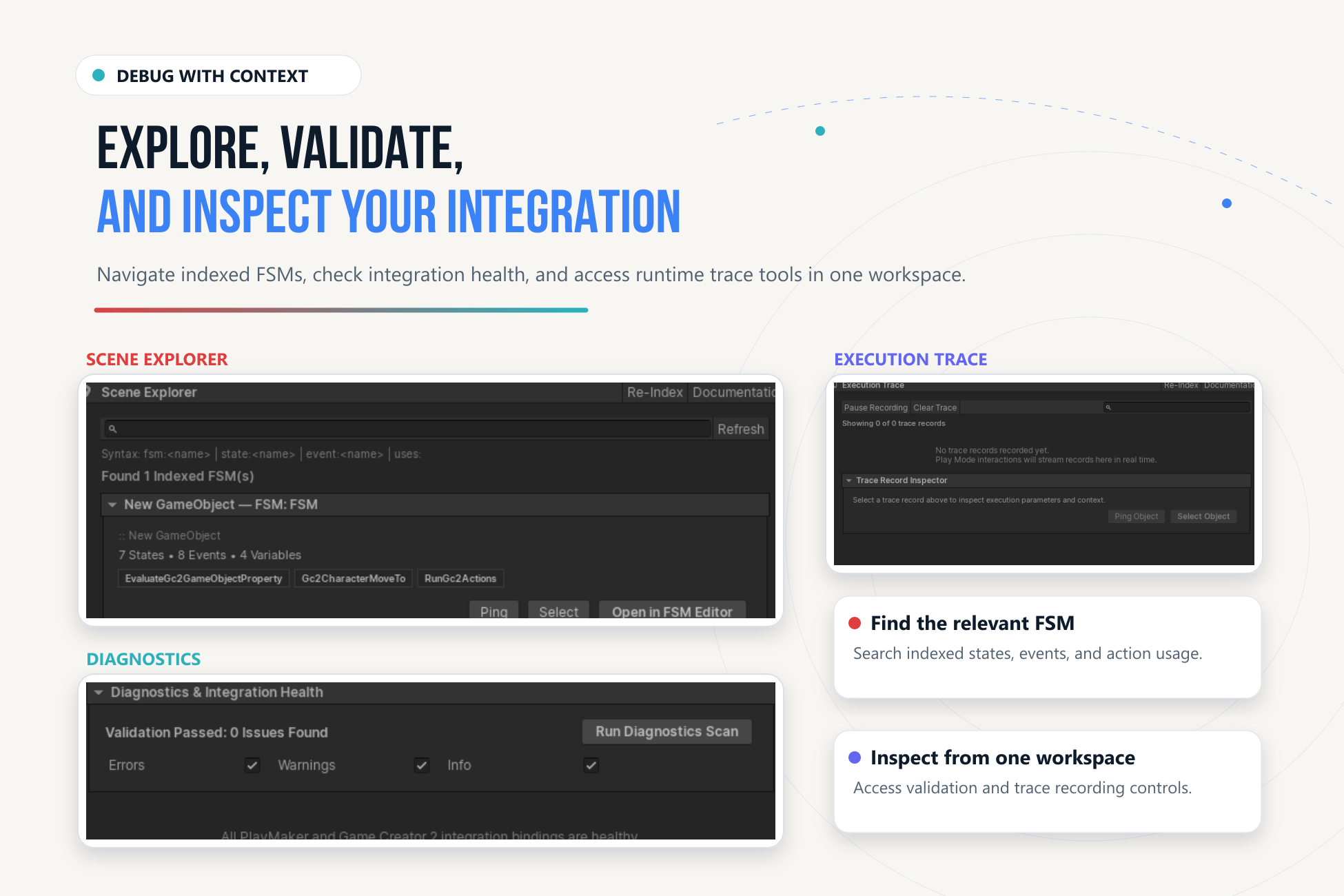

Scene Explorer, Diagnostics scan, and Execution Trace controls
The manual shows workspace controls before a runtime interaction; an empty trace alone does not indicate failure. Open image for full size ↗

Before Shipping#

Run diagnostics after refactors, inspect missing selector entries, and exercise scenes in Play Mode and a representative player build. A clean authoring scan does not prove every dynamic target or optional module path resolves at runtime.

See Troubleshooting and Compatibility for validation limits.
