Callable Routines#

Use a callable FSM when GC2 should invoke a bounded PlayMaker operation and receive outputs. Use a reusable Gameplay Routine asset when that operation needs a shared definition of inputs, outputs, completion, and execution policy.

Choose an Entry Point#

Entry Configuration lives in Use it for
PlayMaker/Run PlayMaker FSM GC2 Instruction Direct scene/prefab calls with input/output mappings.
PlayMaker/Routines/Run Gameplay Routine Gameplay Routine asset plus call-site values Reuse a named, typed operation across callers.
Send PlayMaker Event Event sender and FSM graph An unbounded state machine that owns its own lifetime.

Call a Scene or Prefab FSM#

  1. Add Run PlayMaker FSM in a GC2 Actions list.
  2. Choose Scene Object or Prefab source. Assign the target or prefab and a unique FSM Name.
  3. Select execution mode deliberately. Restart is the serialized default; use a non-disruptive policy when another caller owns the FSM.
  4. Map input values into existing, compatible FSM variables. Map outputs to compatible GC2 destinations.
  5. Enable Wait Until Complete when the following GC2 Instructions depend on the result.
  6. Configure timeout/time mode, lifecycle management, cancellation, and prefab cleanup as appropriate.
  7. Author a real FSM finish path and test both normal completion and interruption.
Setting Meaning
Restart / Start Request the corresponding native start behavior; review whether an existing run is affected.
Reject Do not accept a conflicting active execution.
Join Observe existing execution without taking ownership.
Lifecycle/cleanup policy Choose whether an owned run stops, stays running, or its owned instance is destroyed.
Prefab Auto Destroy Cleanup for a spawned instance according to the execution path.
Timeout and Time Mode Bound waiting using the selected clock.
Input / Output mappings Typed transfer at the call boundary; not ongoing binding.

The instruction also exposes specialized execution policies in its mode selector. Inspect the field descriptions when using Start If Stopped, Restart Owned, Join Current, or Send Start Event And Join; they express different ownership/start intent.

Author a Gameplay Routine Asset#

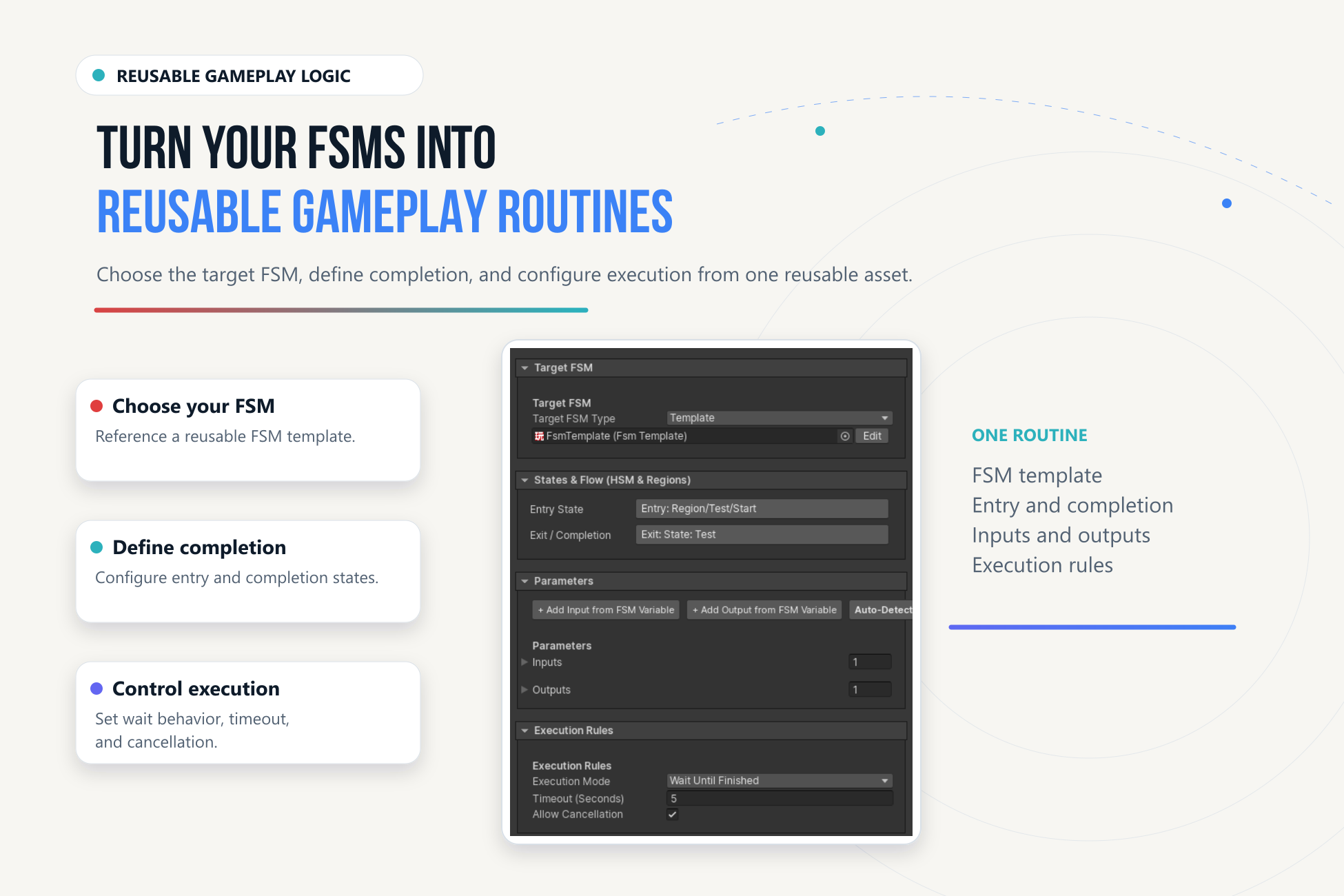

Gameplay Routine inspector with target, completion, parameters, and execution rules
A reusable routine records the target FSM, typed boundary data, completion rule, and execution policy. Open image for full size ↗
  1. Open Gameplay Routines in the workspace and create/select a routine asset.
  2. Choose a target FSM object/prefab reference or FSM template. Configure its name and optional entry state.
  3. Define completion through FSM Finished, State Reached, Event Received, or the available combined rule.
  4. Add input/output definitions and bind them to existing FSM variables. Mark inputs required when omission should fail validation.
  5. Set execution policy, timeout, and cancellation. The asset defaults to Wait Until Finished, a 5-second timeout, and cancellation enabled.
  6. Add Run Gameplay Routine in GC2, assign the asset, configure target override if needed, and fill the typed call parameters.
  7. Validate the asset and run it in Play Mode. Inspect Store Success and trace outcomes before consuming outputs.

A routine asset's object/prefab reference identifies its FSM definition; do not assume it uses the direct callable instruction's prefab-instantiation lifecycle. Configure and verify the actual runtime target, or use the explicit Prefab source on Run PlayMaker FSM when that is required.

Execution Policies#

Gameplay Routine policy Intent
Wait Until Finished Own a new invocation and wait for completion.
Run And Forget Start and return without a synchronous result boundary.
Join Existing Observe a compatible tracked invocation; do not inject new inputs into its run.
Restart Existing Apply the runner's restart/ownership handling before a new invocation.
Reject If Running Refuse conflicting execution.

Joining is not a general attachment to any unrelated running native FSM. A compatible tracked invocation is required. A detached call cannot provide outputs immediately; consume results only at an actual completion boundary.

The Gameplay Routine runner uses realtime for its timeout measurement. This differs from the Scaled/Unscaled selector on the direct callable FSM instruction.

Test the Failure Paths#

Test missing targets, ambiguous names, required inputs, incompatible mappings, busy/join/restart policies, timeout, cancellation, and cleanup. A state named Done alone is not necessarily an FSM finish; choose State Reached explicitly if that is the routine's contract.

See Examples for the current state of the bundled callable example and a verified setup exercise.
